Before You Start…
WarningCarefully read all safety information and instructions before installation.
You must follow these instructions.
Incorrect mounting or installation may put you, your TV, and your family at substantial risk.
Carefully read all safety information
and instructions before installation.
You must follow these instructions.
Incorrect mounting or installation may put you,
your TV, and your family at substantial risk.

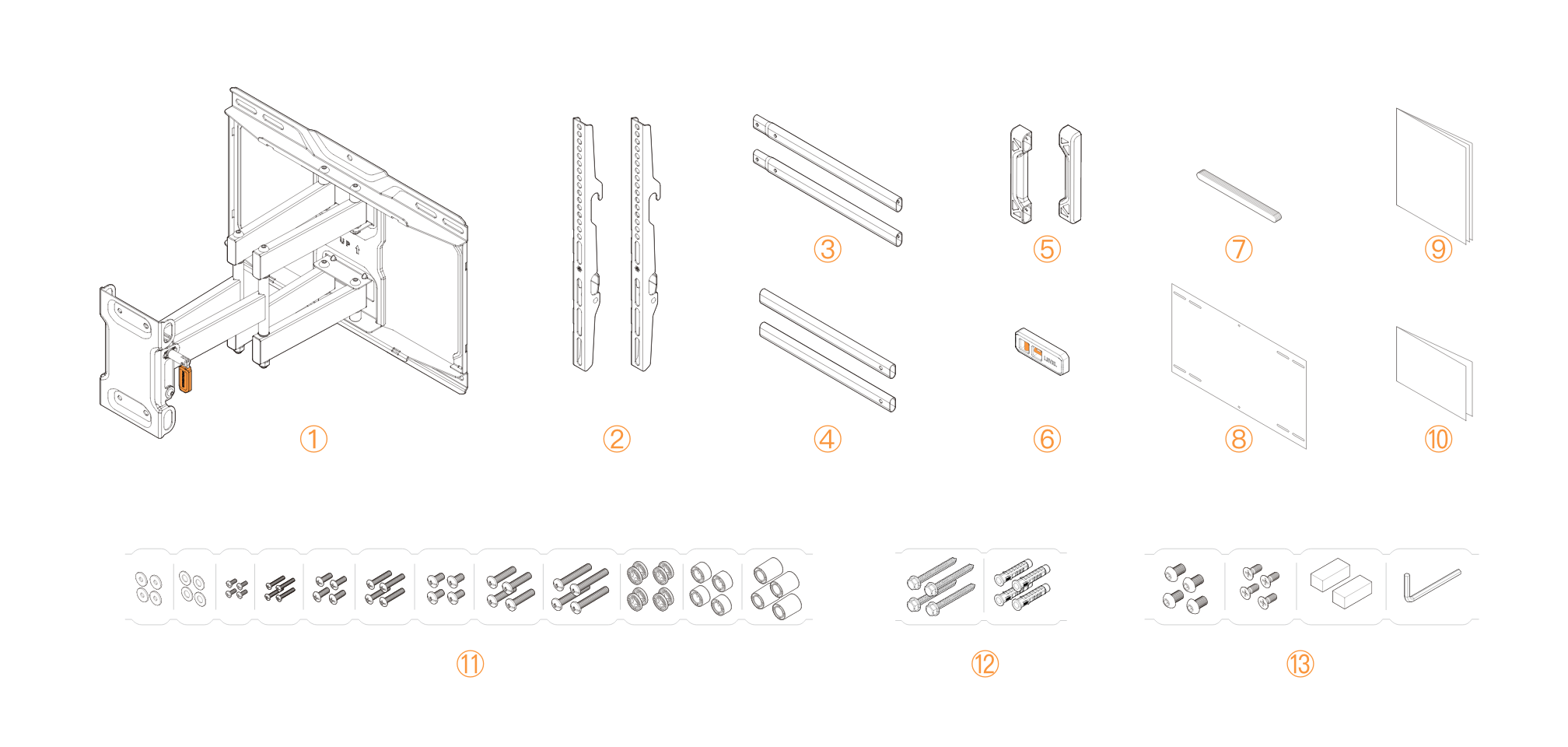

Check Included Parts and Hardware
① Arm Assembly / Wall Plate x 1
② TV Bracket x 2
③ Front Support Bar x 2
④ Front Support Bar x 2
⑤ End Cap x 2
⑥ Level x 1
⑦ Cable Strap x 5
⑧ Wall Plate Template x 1
⑨ Manual x 1
⑩ Quick Start Guide x 1
⑪ TV Fastener Kit:
M4/M5 Washer x 4
M6/M8 Washer x 4
M4x12mm TV Bolt x 4
M4x30mm TV Bolt x 4
M6x15mm TV Bolt x 4
M6x35mm TV Bolt x 4
M8x15mm TV Bolt x 4
M8x35mm TV Bolt x 4
M8x50mm TV Bolt x 4
L2.5mm Spacer x 8
L10mm Spacer x 4
L22mm Spacer x 4
⑫ Wall Fastener Kit:
ST 5/16x2 3/4” Lag Screw x 4
Wall Anchor x 4
⑬ Assembly Hardware Kit:
M6x10mm Bolt x 2
M4x10mm Bolt x 4
EVA Pad x 2
5/32″ (4mm) Allen Key x 1

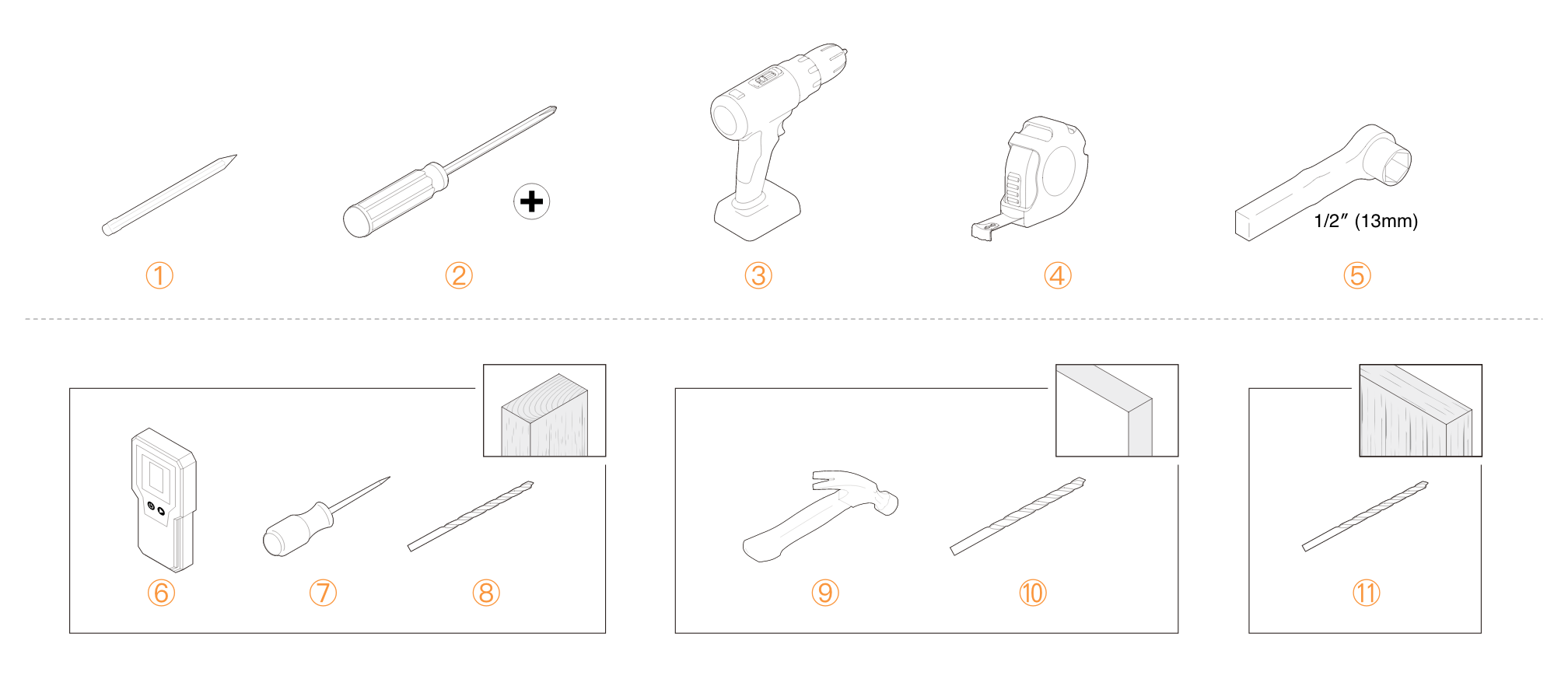

Gather Required Tools (not included)
① Pencil
② Phillips Screwdriver
③ Electric Drill
④ Tape Measure
⑤ 1/2″ (13mm) Socket Wrench
For Wood Studs
⑥ Stud Finder
⑦ Awl
⑧ 7/32″ (5.5mm) Wood Drill Bit
For Solid Concrete:
⑨ Hammer
⑩ 3/8″ (10mm) Concrete Drill Bit
For Wood Walls:
⑪ 7/32″ (5.5mm) Wood Drill Bit
Let's Get Started!
STEP 1: Attach the TV Brackets to the TV
What kind of TV do you have?
Flat Back TVs

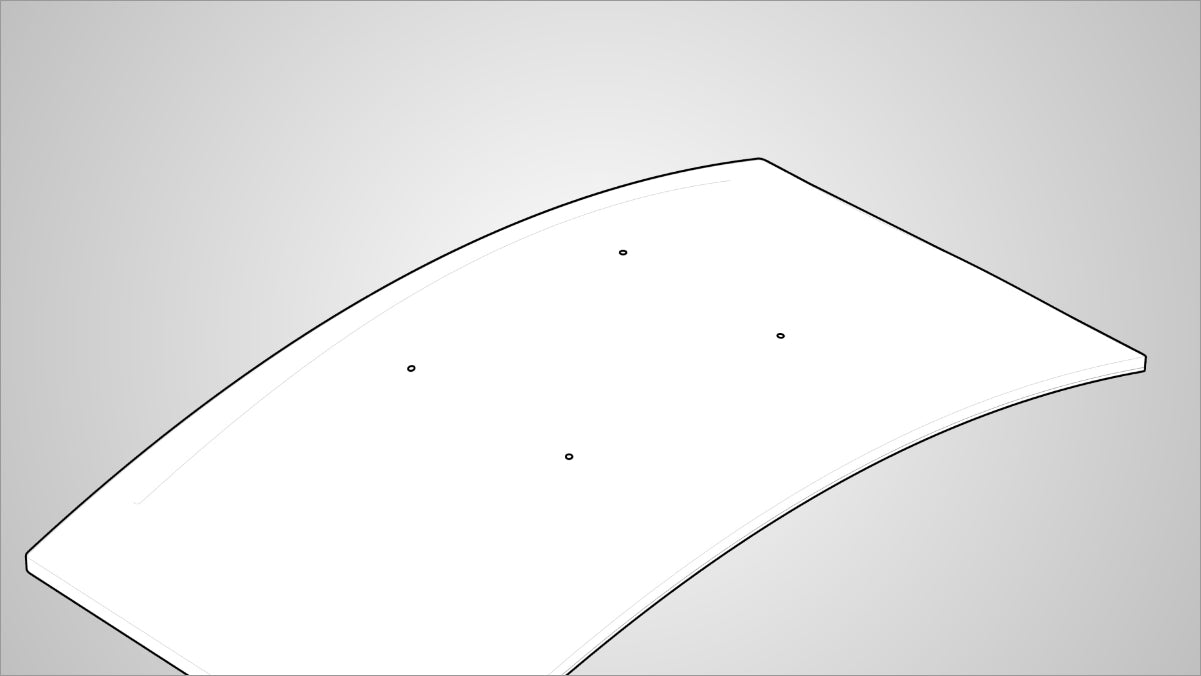

Curved Back TVs

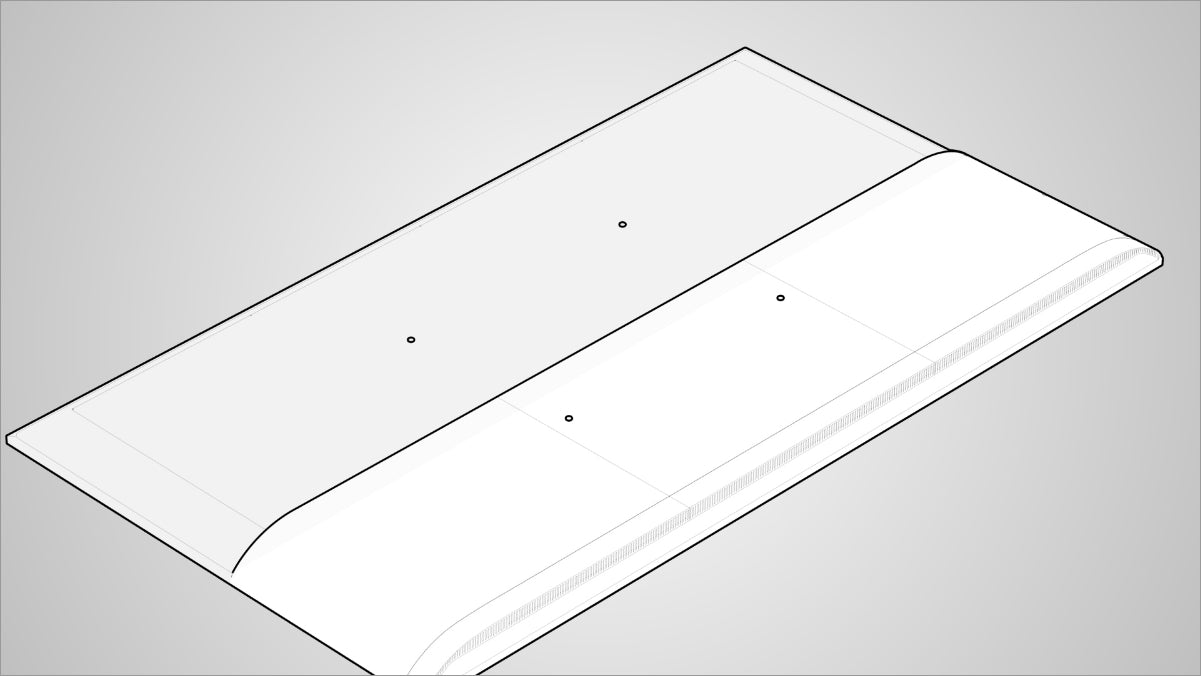

TVs with a "Bump"
STEP 2: Mount the Arm Assembly / Wall Plate on the Wall
What type of wall are you mounting to?

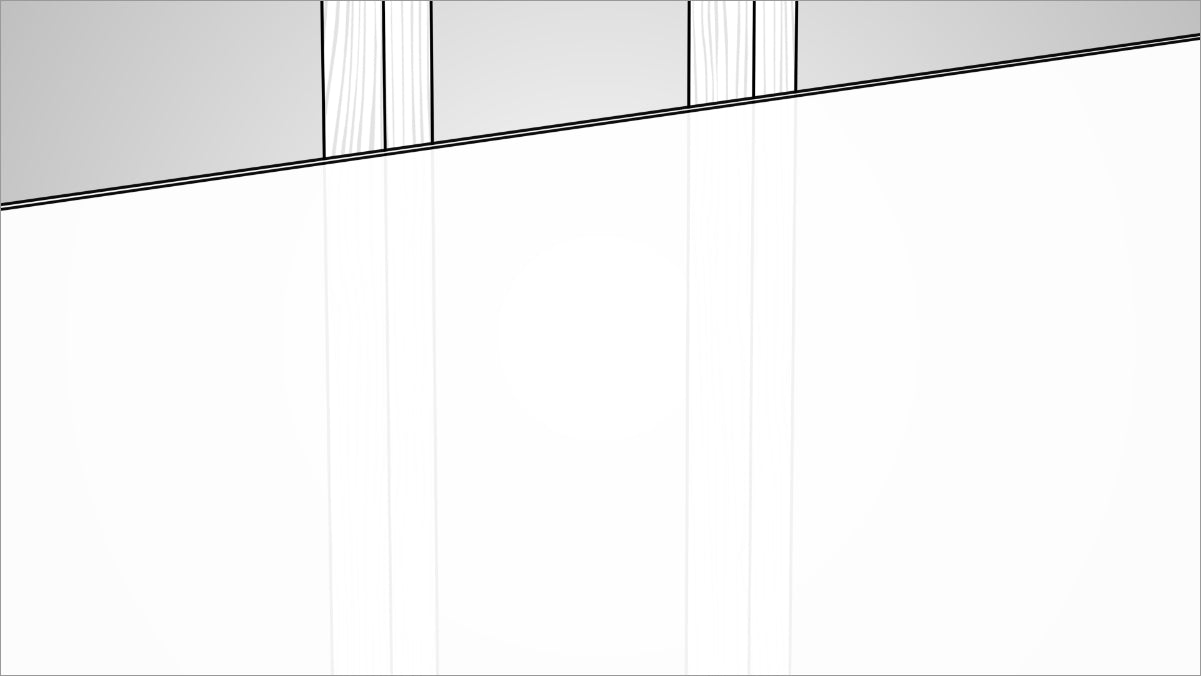

Wood Studs

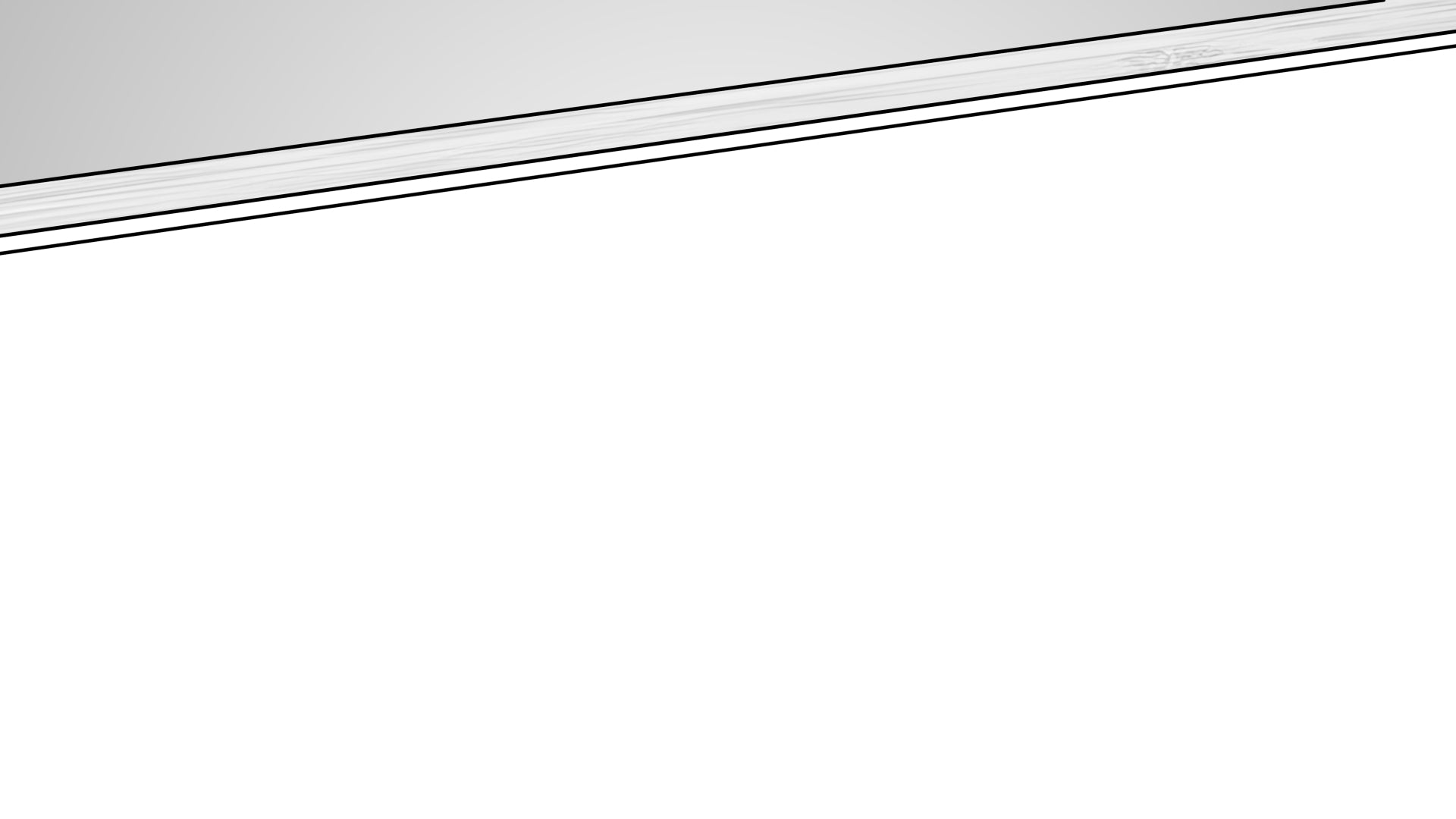

Solid Concrete

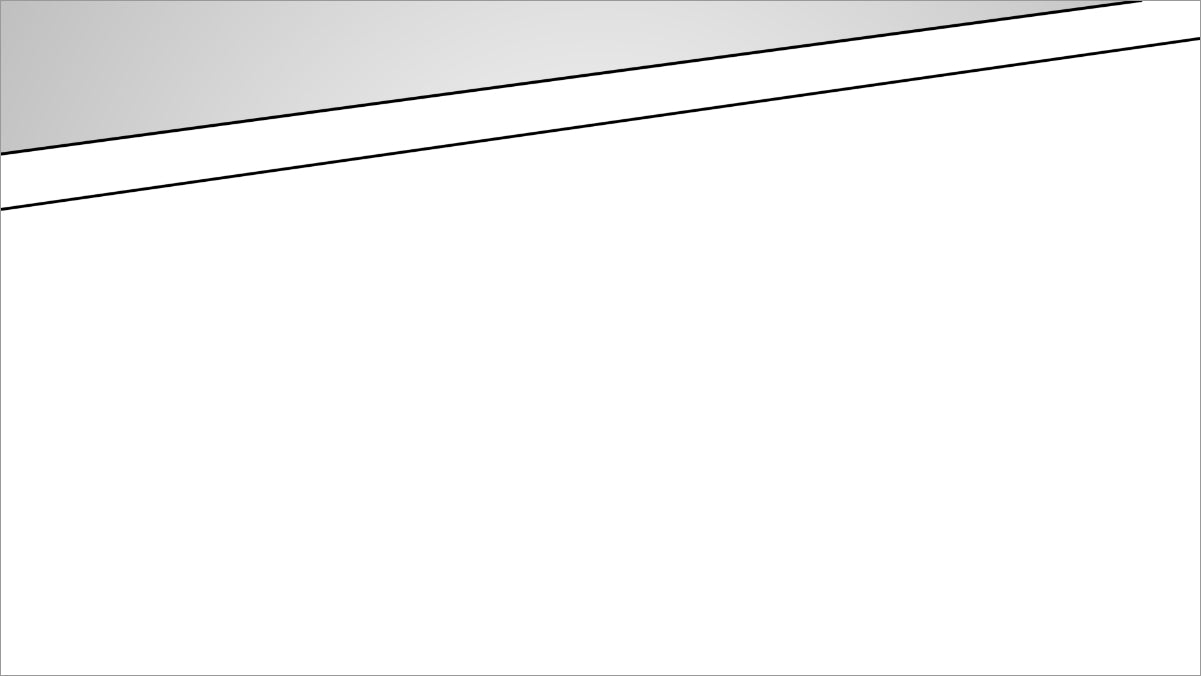

Wood Walls
STEP 3: Secure the TV to the Mount

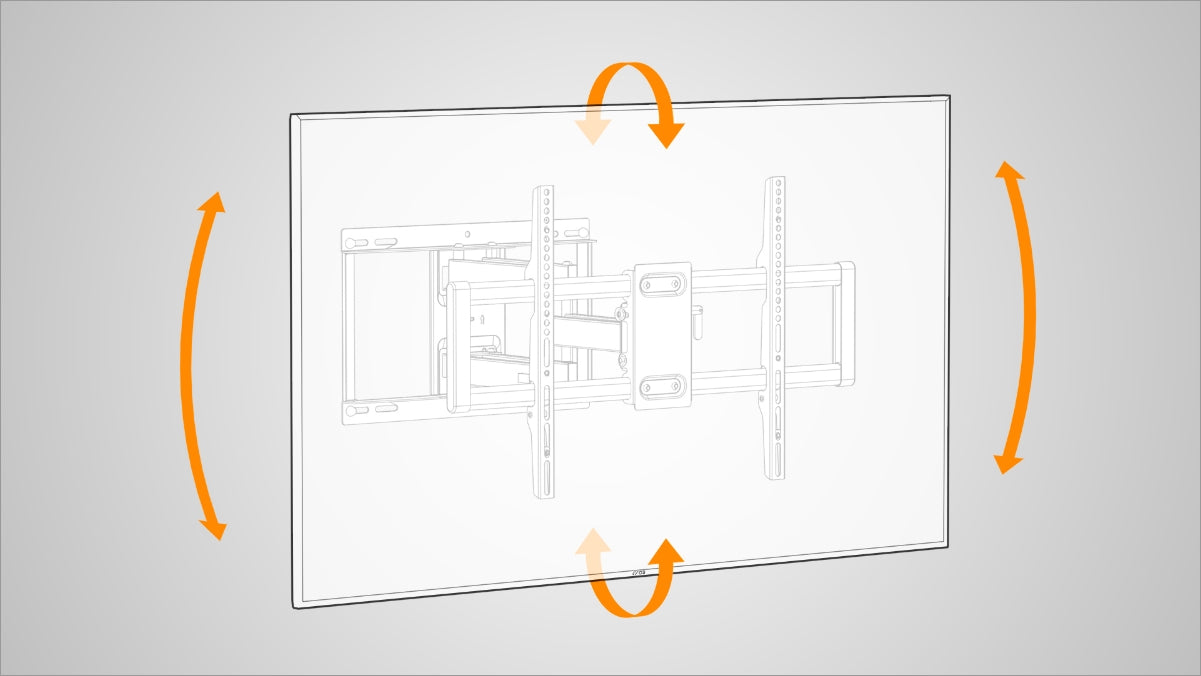

Adjusting the TV Angle and Managing Cables
YES
NOFAQs
1. How do I confirm the vesa pattern of my tv？
The vesa mounting patterns are the distance (in mm)between four screw holes at the back of the tv.
So VESA = horizontal x veritical at the back of your TV.
2. Can the TV wall mount be installed in drywall alone?
No, the TV wall mount is for use on wood stud,solid concrete brick or block walls.
3. The distance of studs is bigger than the TV wall mount, what should I do?
Please place the hardwoods to create a center between your wood studs,then screw it on your wall.
Finally, install the tv wall mount on your wall as usual.
4. It's difficult to screw the lag screws into the wood studs,what should I do?
Please check the lag screws to see if they are defective, if not, please drill the holes as requested and then use a socket wrench instead of an electric tool to screw the lag screws.
5. How do I make sure the tv wall mount is sturdy enough to hold up my TV?
Before installing your TV, please pull down the TV wall mount with your hands to make sure it is fixed securely.
