Before You Start…

Warning

Carefully read all safety information and instructions before installation. You must follow these instructions. Incorrect mounting or installation may put you, your TV, and your family at substantial risk.

Carefully read all safety information and instructions before installation. You must follow these instructions. Incorrect mounting or installation may put you, your TV, and your family at substantial risk.

Read all safety information
CAUTION: Avoid the risk of personal injury or property damage!
  • This product contains small parts that may pose a choking hazard.
  • Before starting assembly, verify that all parts are included and undamaged. Do not use damaged or defective parts. If you require replacements, please contact us.
  • This product is designed for installation on wood studs, solid concrete, and wood walls. Do not install on drywall alone.
  • The wall must be capable of supporting four times the weight of the TV and mount combined.
  • Use this mounting system only for its intended purpose as described. Do not use outdoors. Do not exceed the Max load. We're not liable for damage or injury caused by incorrect assembly, improper mounting, or inappropriate use.
  • Do not use attachments not recommended by the manufacturer.
  • All fasteners must be firmly tightened.
  • Route cords and cables properly to avoid mechanical damage.

    • Check Included Parts and Hardware

    Check Included Parts and Hardware

    ① Arm Assembly / Wall Plate x 1

    ② TV Bracket x 2

    ③ Front Support Bar x 2

    ④ Front Support Bar x 2

    ⑤ End Cap x 2

    ⑥ Level x 1

    ⑦ Cable Strap x 5

    ⑧ Wall Plate Template x 1

    ⑨ Manual x 1

    ⑩ Quick Start Guide x 1

    ⑪ TV Fastener Kit:

    M4/M5 Washer x 4

    M6/M8 Washer x 4

    M4x12mm TV Bolt x 4

    M4x30mm TV Bolt x 4

    M6x15mm TV Bolt x 4

    M6x35mm TV Bolt x 4

    M8x15mm TV Bolt x 4

    M8x35mm TV Bolt x 4

    M8x50mm TV Bolt x 4

    L2.5mm Spacer x 8

    L10mm Spacer x 4

    L22mm Spacer x 4

    ⑫ Wall Fastener Kit:

    ST 5/16x2 3/4” Lag Screw x 4

    Wall Anchor x 4

    ⑬ Assembly Hardware Kit:

    M6x10mm Bolt x 2

    M4x10mm Bolt x 4

    5/32″ (4mm) Allen Key x 1

    Gather Required Tools (not included)

    Gather Required Tools (not included)

    ① Pencil

    ② Phillips Screwdriver

    ③ Electric Drill

    ④ Tape Measure

    ⑤ 1/2″ (13mm) Socket Wrench

    For Wood Studs

    ⑥ Stud Finder

    ⑦ Awl

    ⑧ 7/32″ (5.5mm) Wood Drill Bit

    For Solid Concrete:

    ⑨ Hammer

    ⑩ 3/8″ (10mm) Concrete Drill Bit

    For Wood Walls:

    ⑪ 7/32″ (5.5mm) Wood Drill Bit

    Let's Get Started!

    STEP 1: Attaching the TV Brackets to Your TV

    What kind of TV do you have?

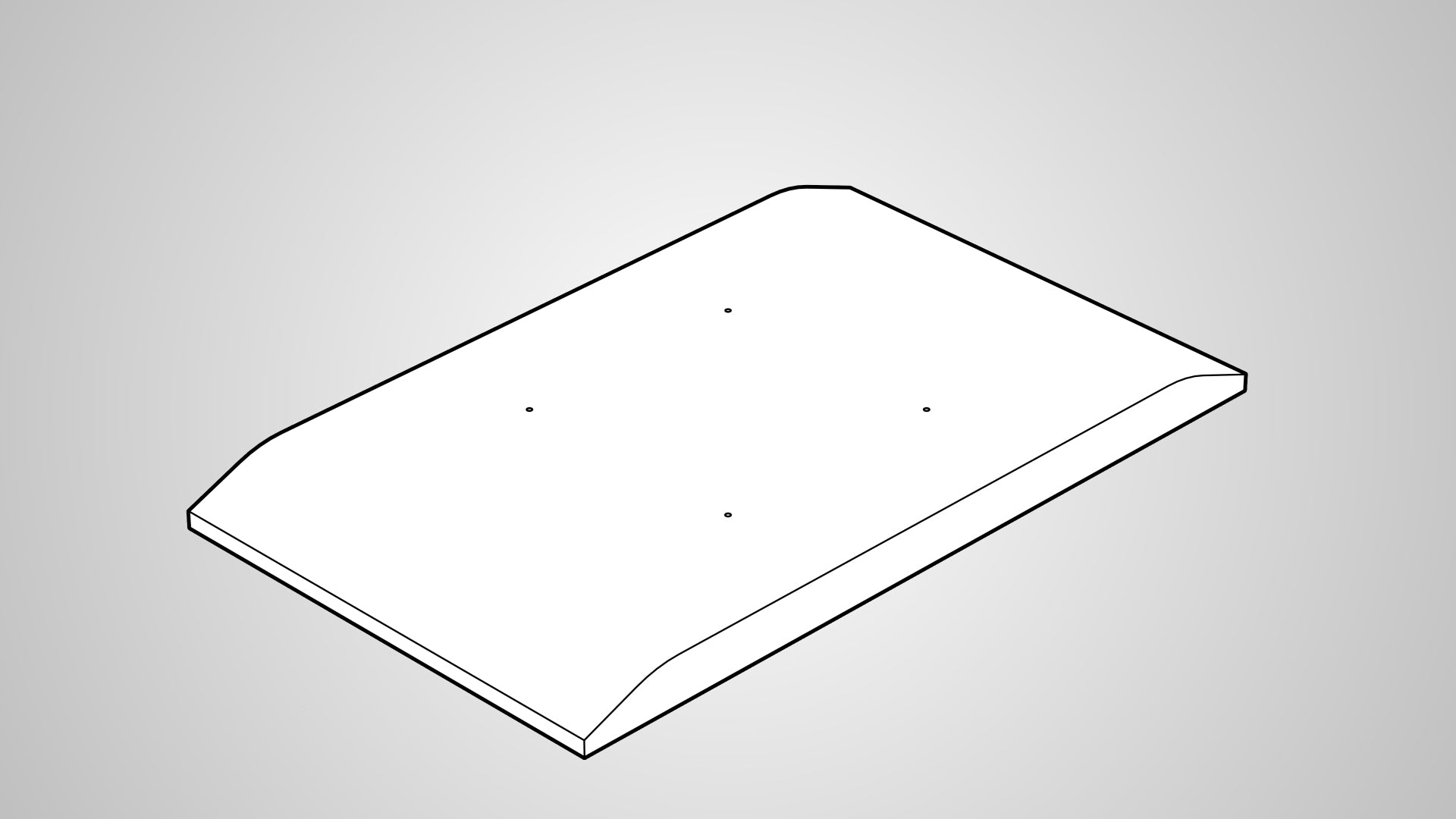

    Flat-Back TVs

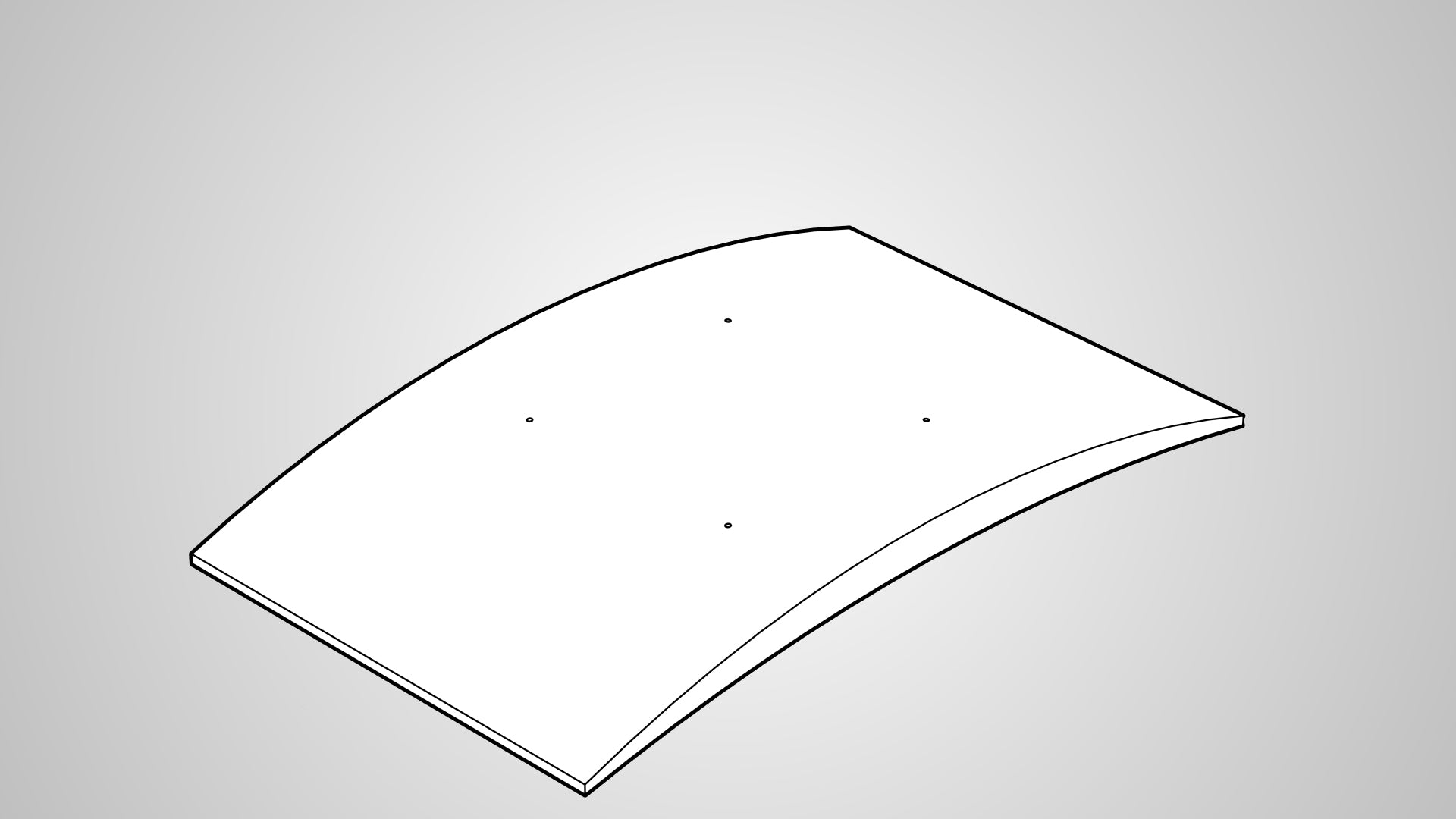

    Curved-Back TVs

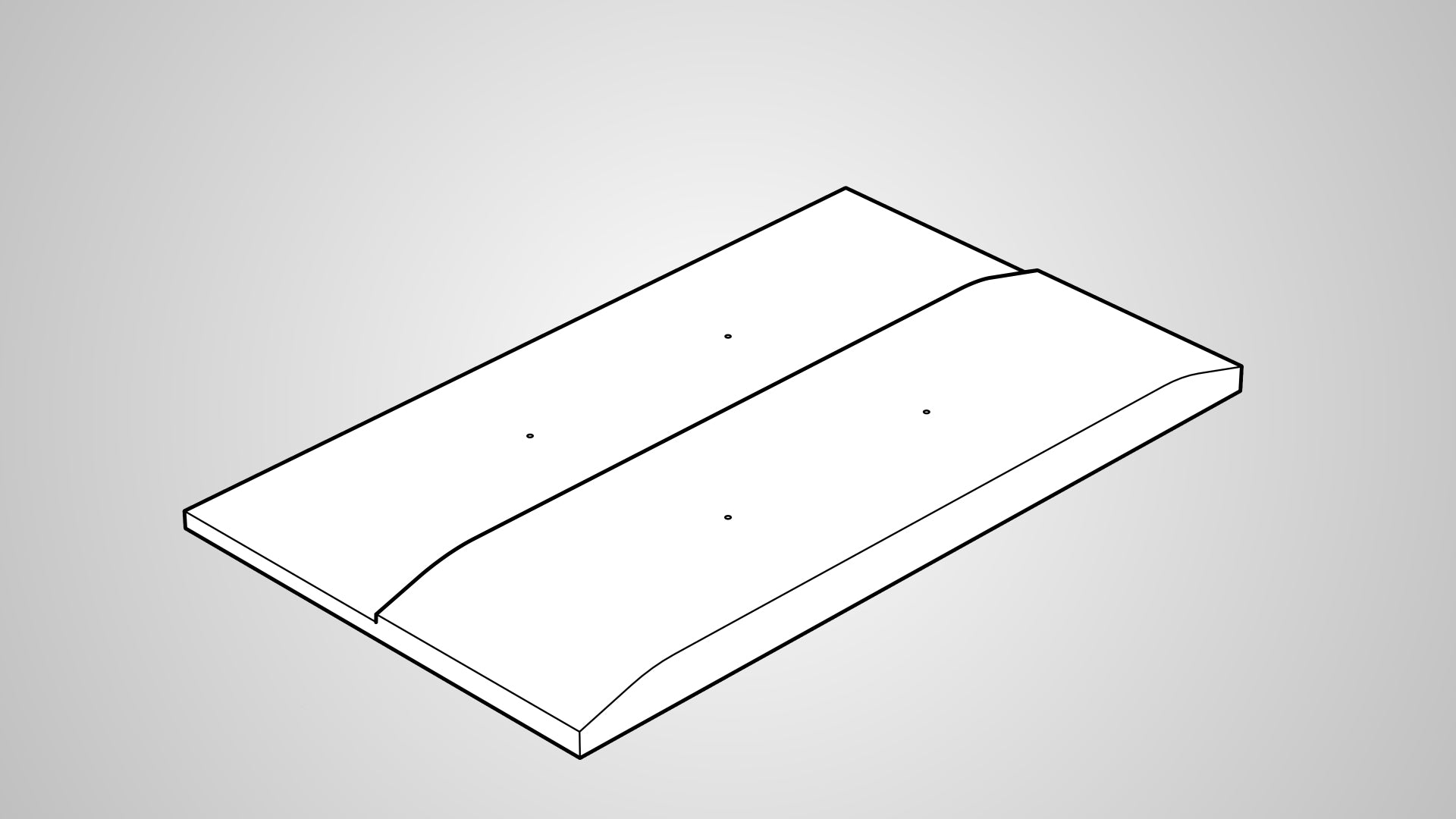

    TVs with a Bump

    STEP 2: Mount the Arm Assembly / Wall Plate on the Wall

    What type of wall are you mounting to?

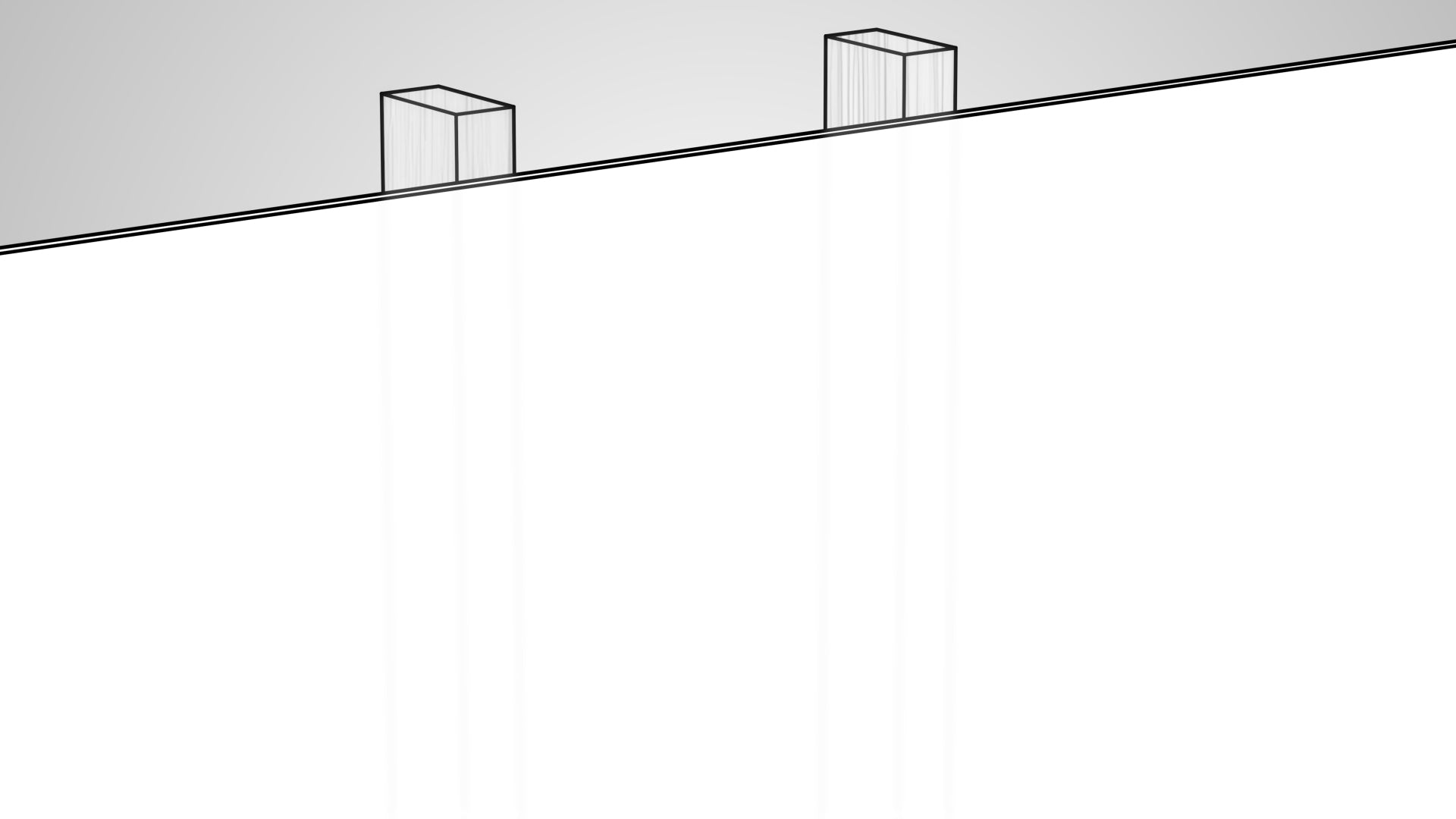

    Wood Studs

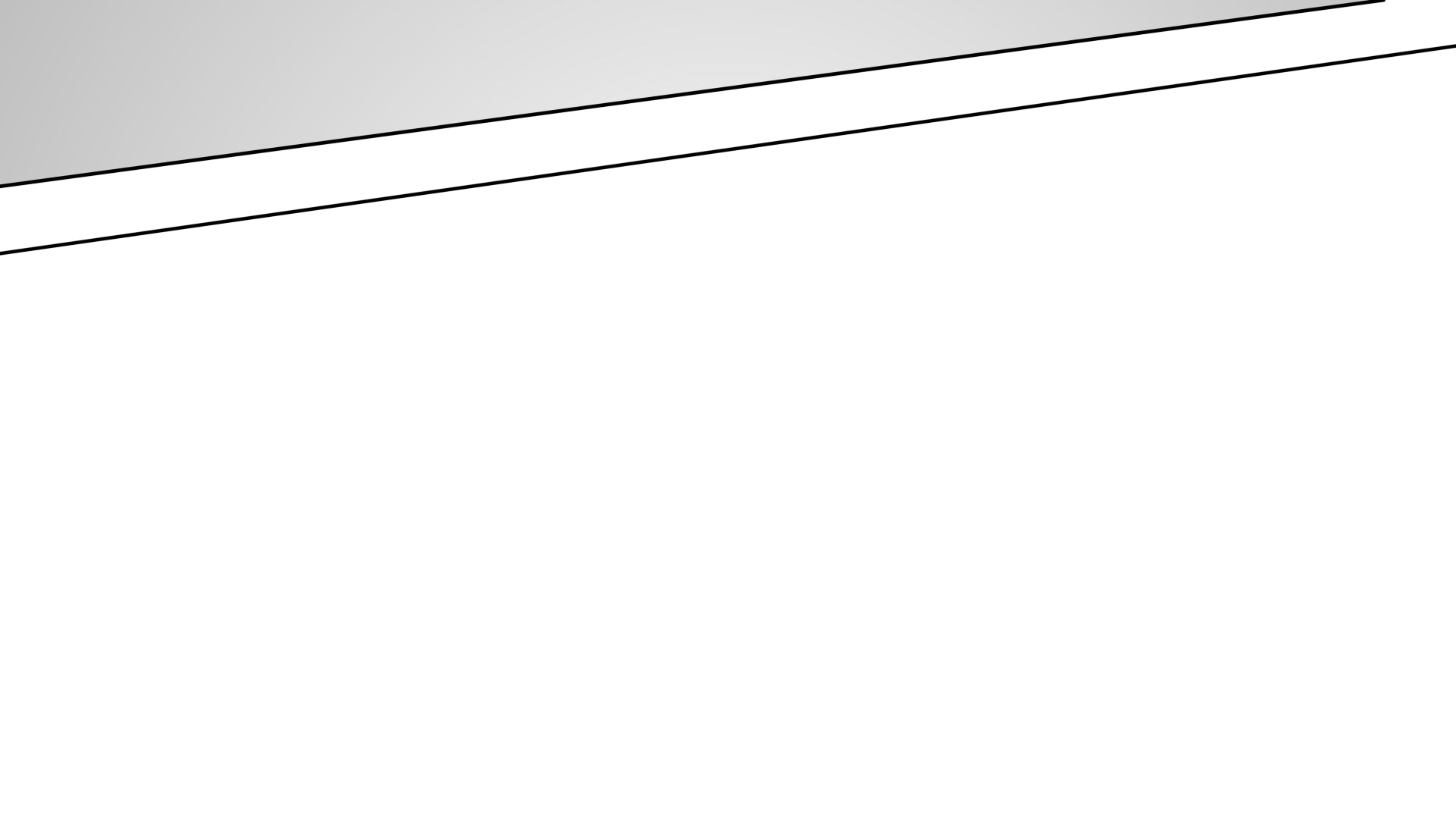

    Solid Concrete

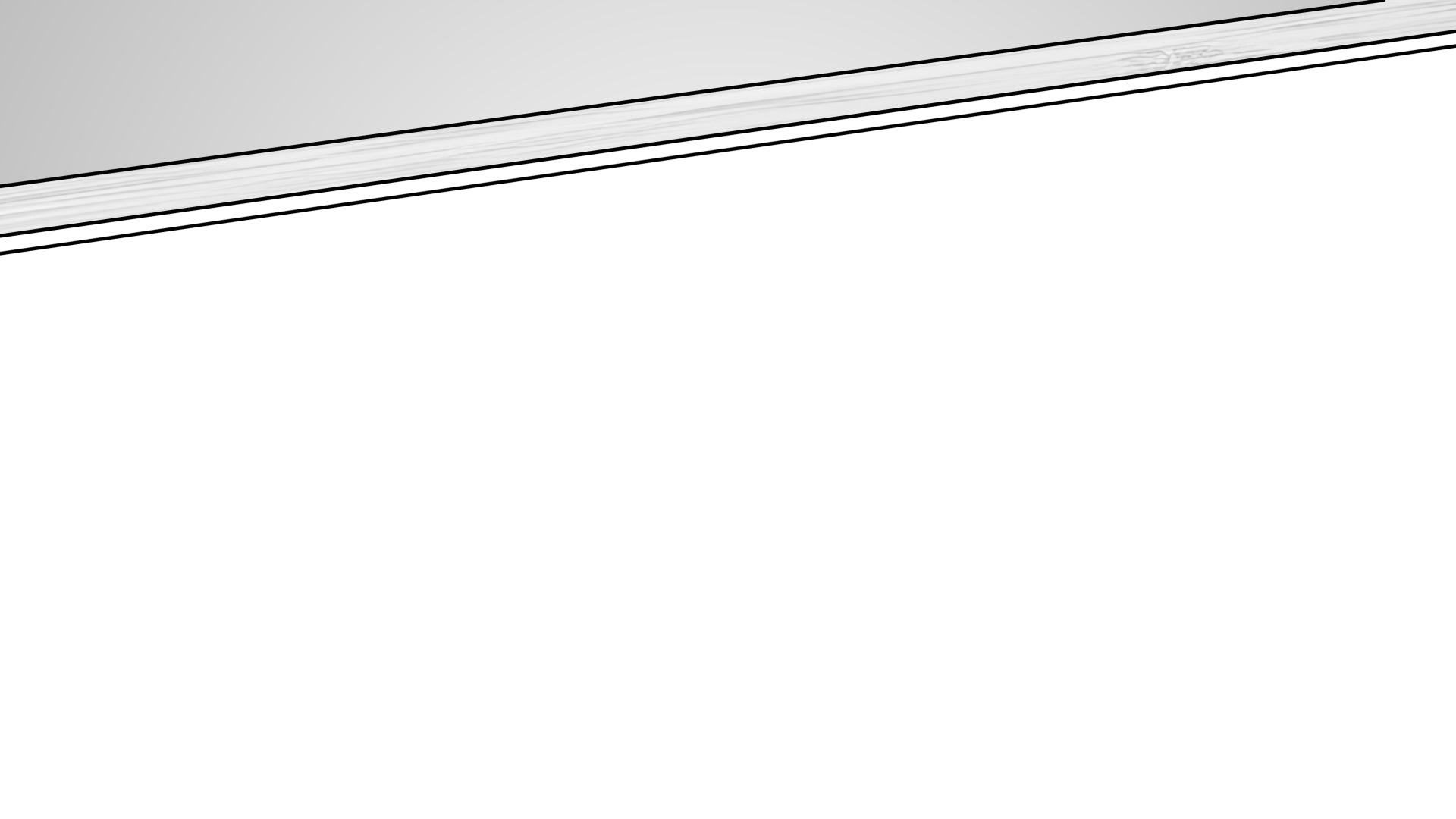

    Wood Walls

    Other Wall Types or If You’re Unsure

    • If your wall is different, do not use the included wall fastener kit. Purchase appropriate mounting hardware based on your wall type.

    • If you aren’t sure, consult your installer, a specialist supplier, or contact us.

    STEP 3: Securing the TV to the Mount

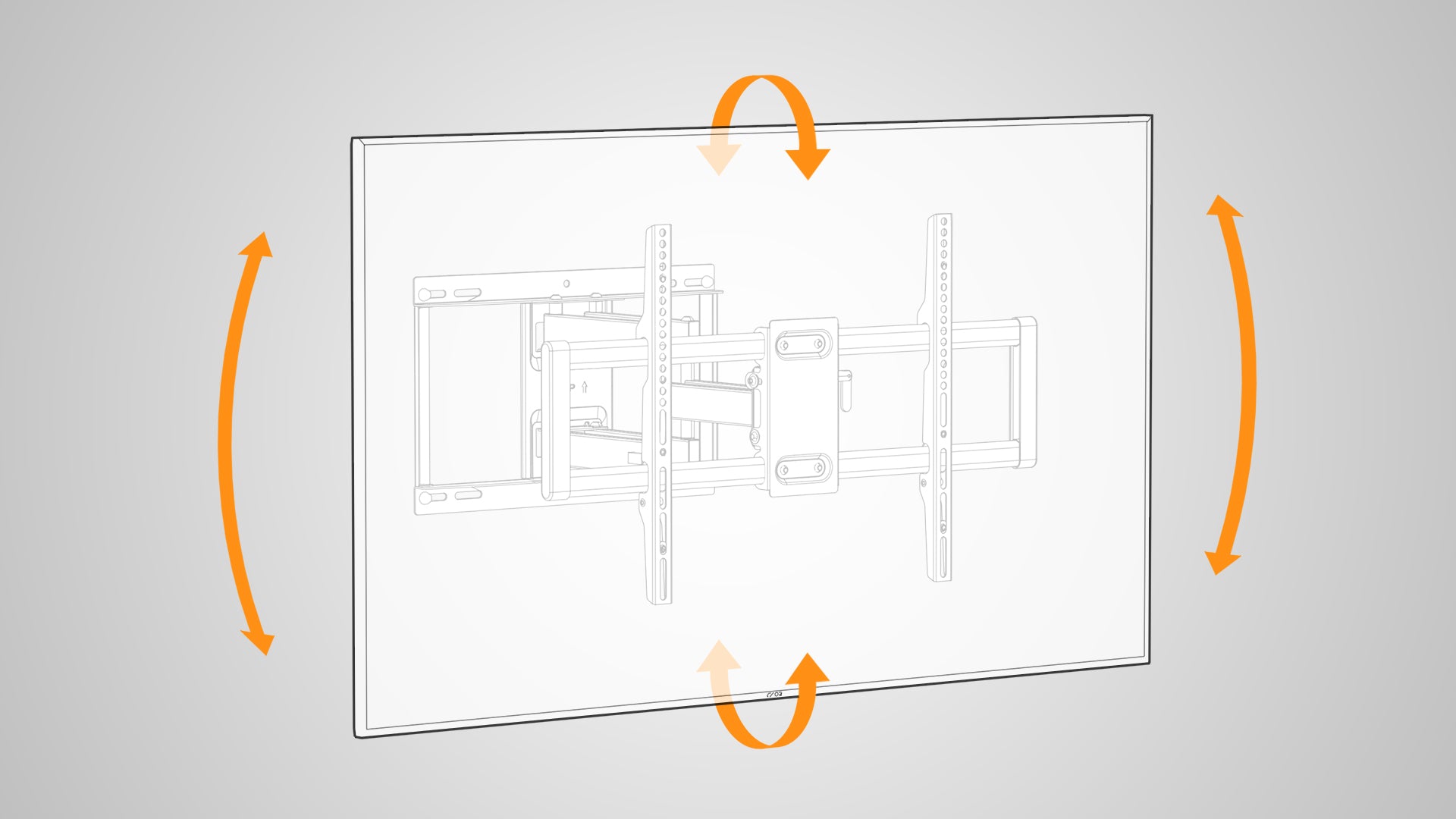

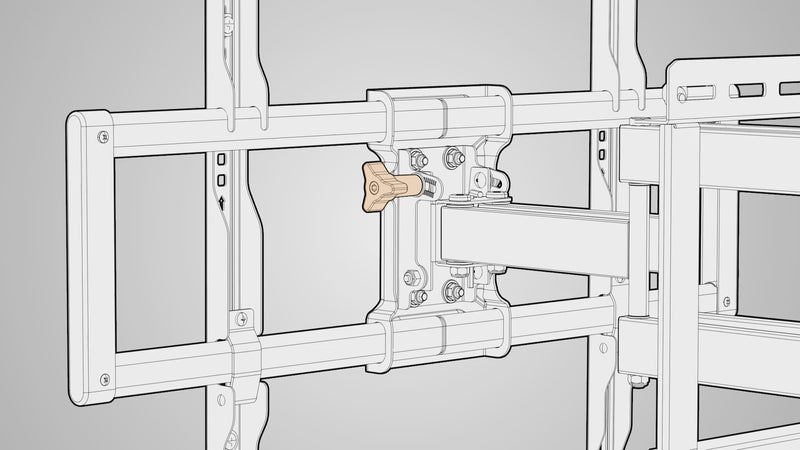

    Adjusting the TV Angle and Managing Cables

    Did You Complete the Installation Successfully?

    FAQs

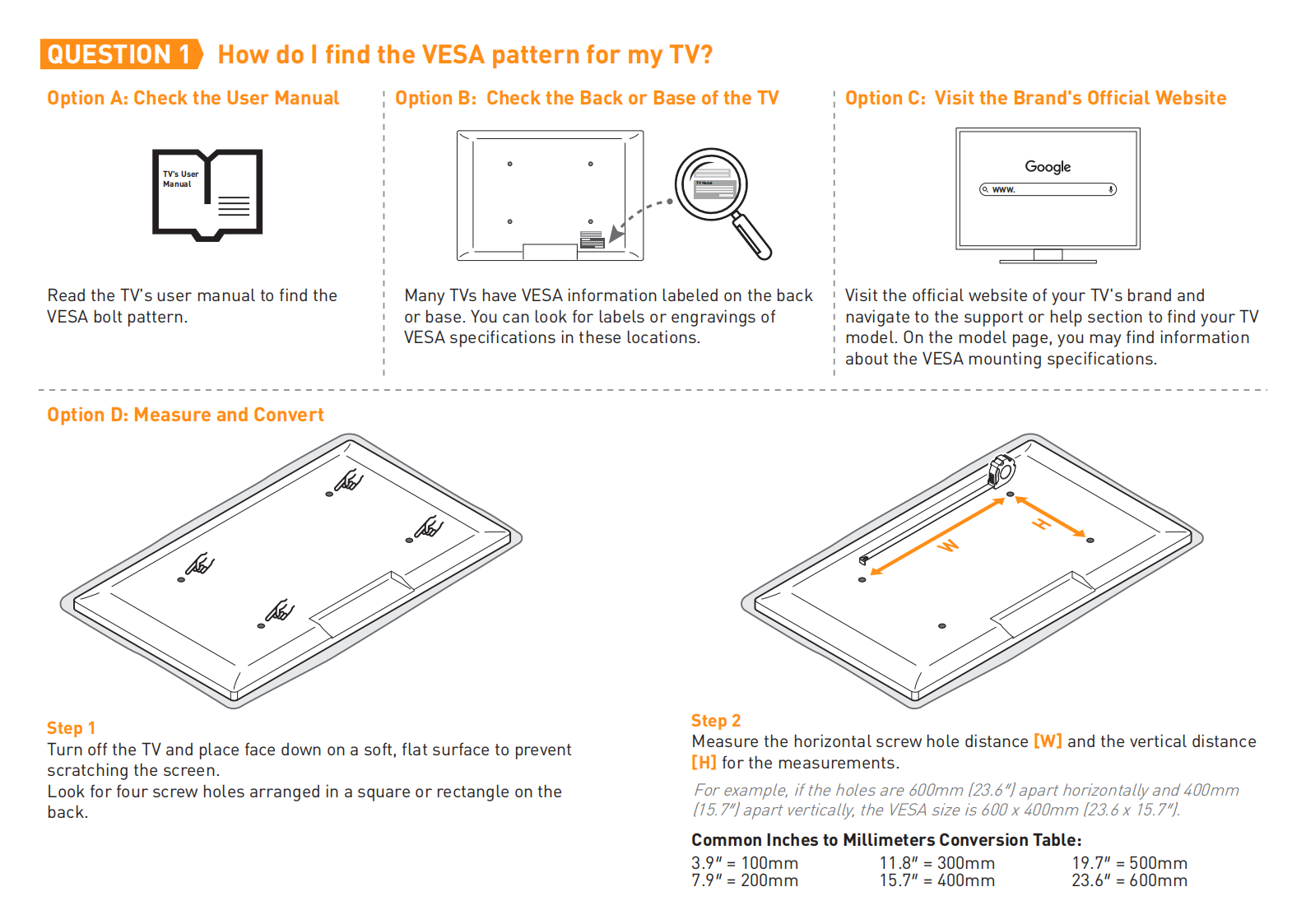

    1. How do I find the VESA pattern for my TV?

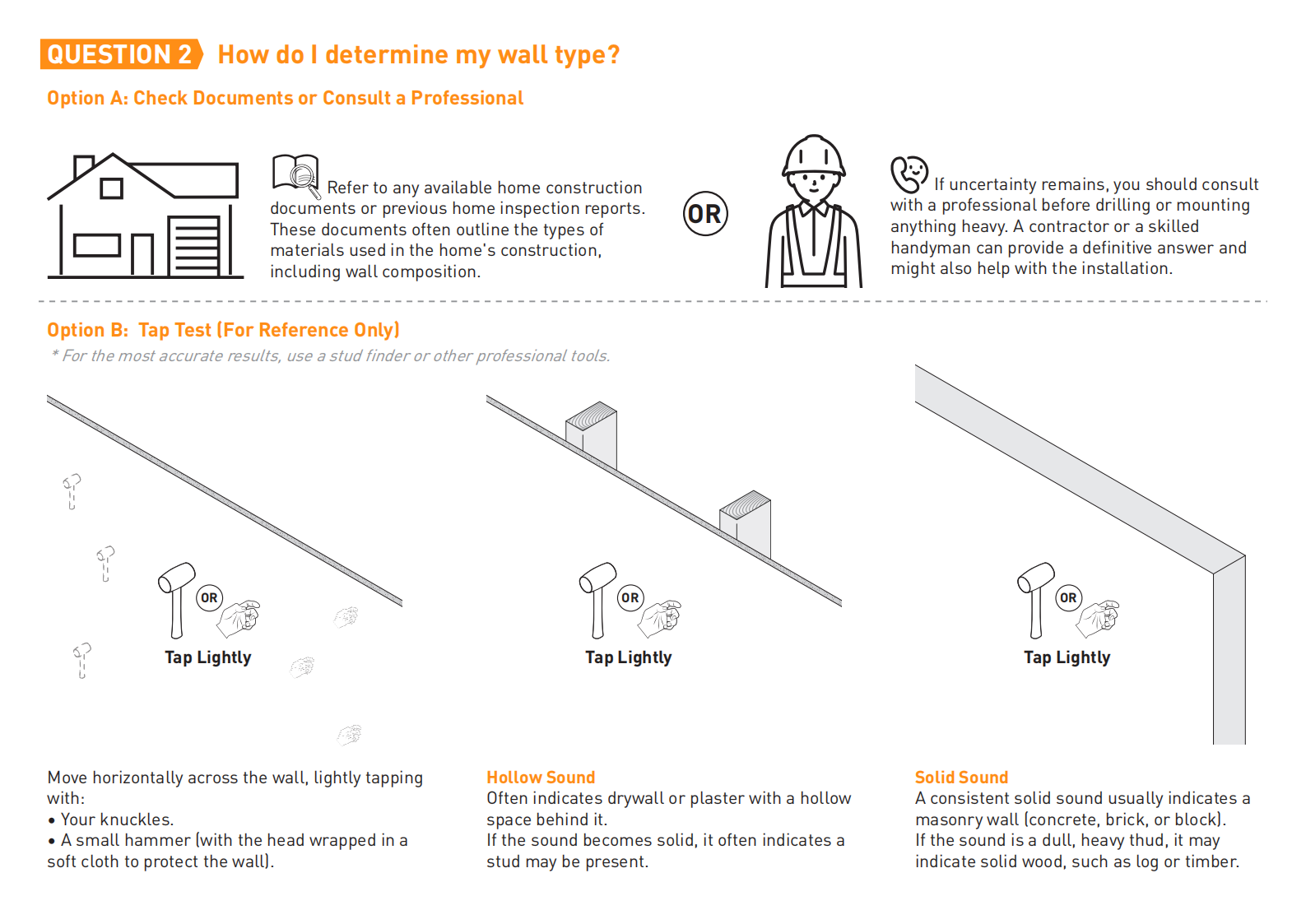

    2. How do I determine my wall type?

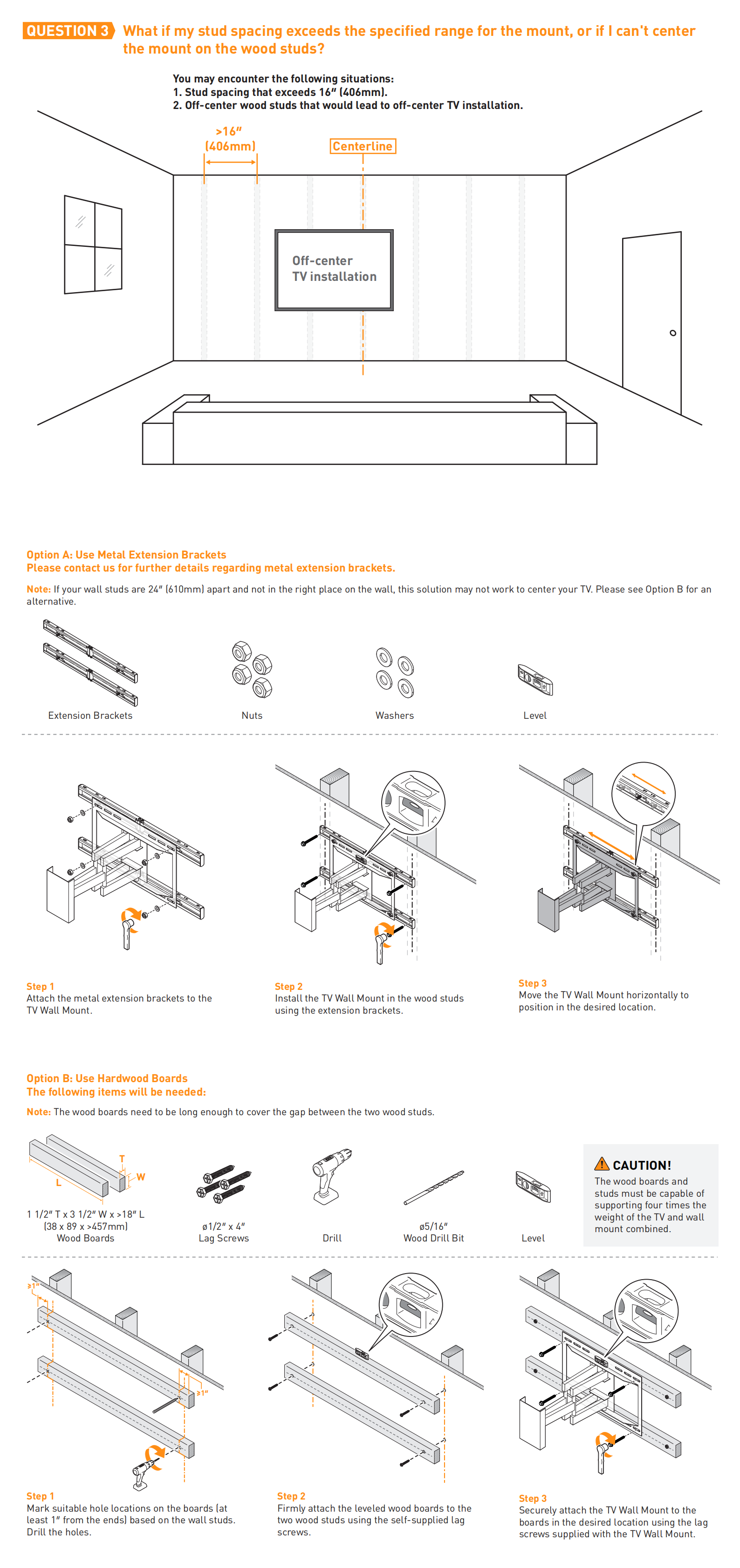

    3. What if my stud spacing exceeds the specified range for the mount, or if I can't center the mount on the wood studs?

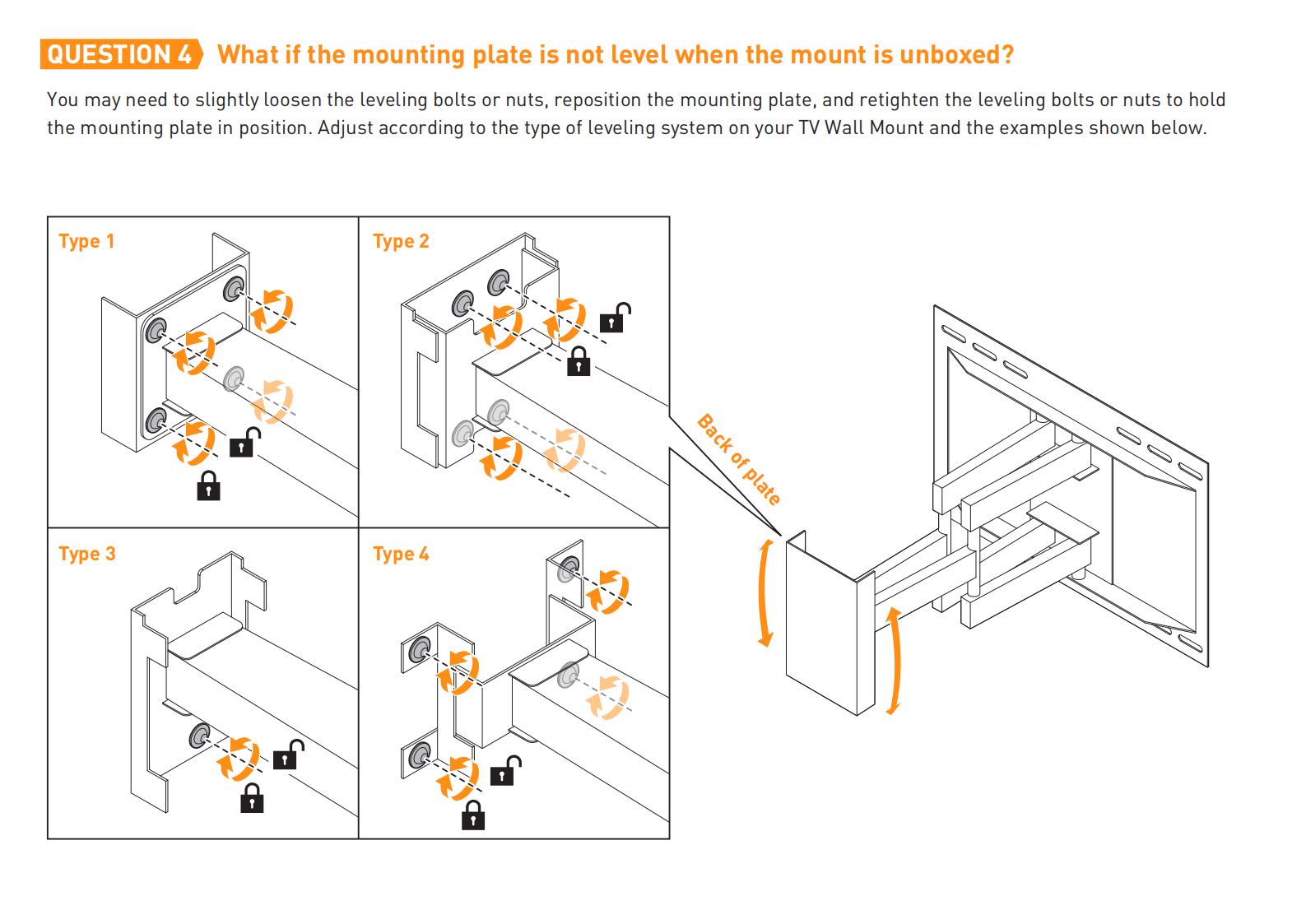

    4. What if the mounting plate is not level when the mount is unboxed?

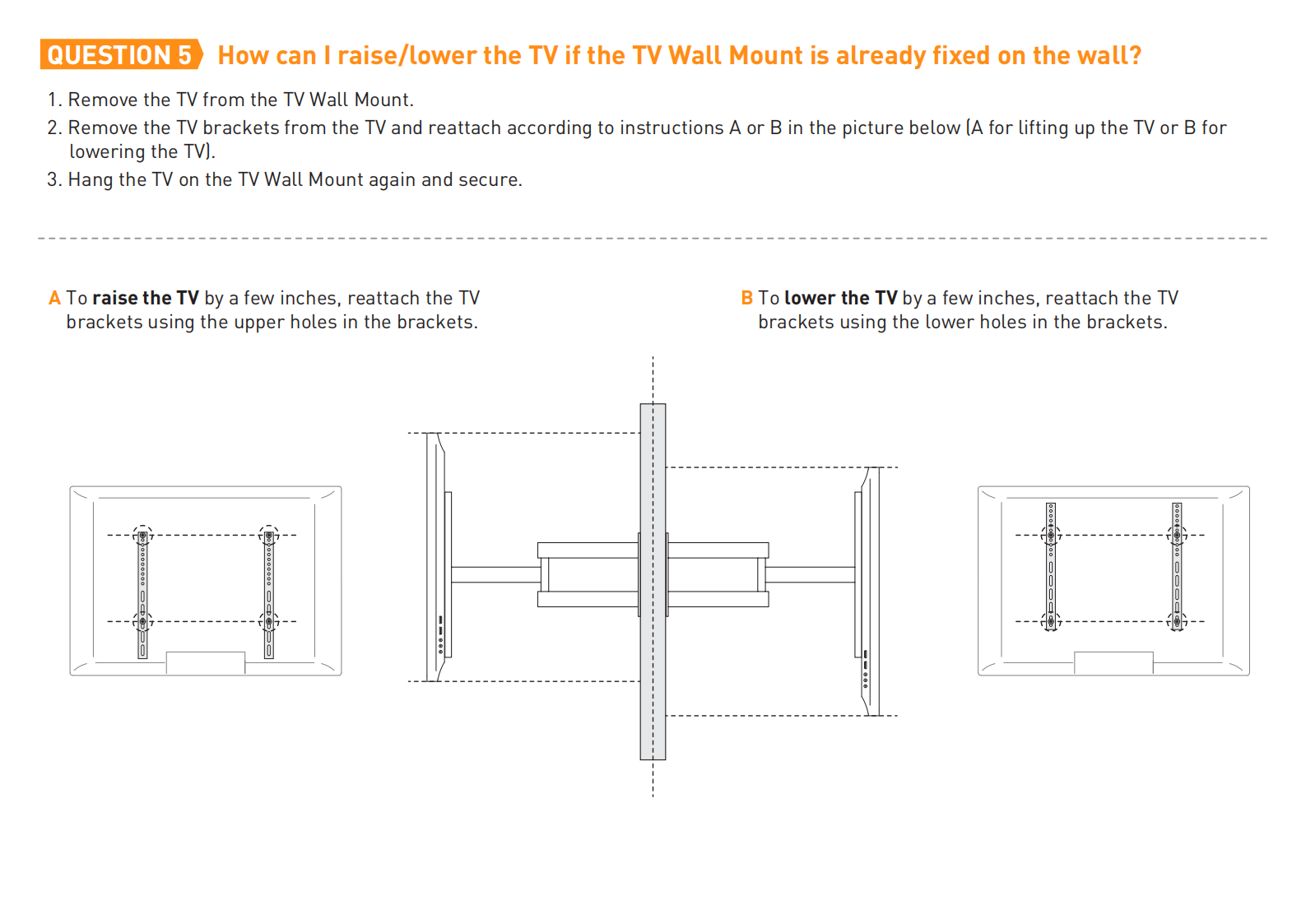

    5. What if the mount is missing parts?

    If you need further assistance with the questions and answers, please contact us.
